Bias model training and quality check report

Preprocessing report

The image below should look closely like a Tn5 or DNase bias enzyme motif.

Training report

The val loss (validation loss) will decrease and saturate after a few epochs.

Bias model performance in peaks and non-peaks

Counts Metrics: The pearsonr in non-peaks should be greater than 0 (higher the better). The pearsonr in peaks should be greater than -0.3 (otherwise the bias model could potentially be capturing AT bias). MSE (Mean Squared Error) will be high in peaks.

Profile Metrics: Median JSD (Jensen Shannon Divergence between observed and predicted) lower the better. Median norm JSD is median of the min-max normalized JSD where min JSD is the worst case JSD i.e JSD of observed with uniform profile and max JSD is the best case JSD i.e 0. Median norm JSD is higher the better. Both JSD and median norm JSD are sensitive to read-depth. Higher read-depth results in better metrics.

What to do if your pearsonr in peaks is less than -0.3? In the range of -0.3 to -0.5 please be wary of your chrombpnet_wo_bias.h5 (that wil potentially be trained with this bias model) TFModisco showing lots of GC rich motifs (> 3 in the top-10). If this is not the case you can continue using the chrombpnet_wo_bias.h5. If you end up seeing a lot of GC rich motifs it is likely that bias model has learnt a different GC distribution than your GC-content in peaks. You might benefit from increasing the bias_threshold_factor argument input to the chrombpnet bias pipeline or chrombpnet bias train command used in training the bias model and retrain a new bias model. For more intuition about this argument refer to the FAQ section in wiki. If the value is less than -0.5 the chrombpnet training will automatically throw an error.

nonpeaks.pearsonr nonpeaks.mse peaks.pearsonr peaks.mse
counts_metrics -0.2 2.66 -0.45 12.12
nonpeaks.median_jsd nonpeaks.median_norm_jsd peaks.median_jsd peaks.median_norm_jsd
profile_metrics 0.64 0.15 0.5 0.25

TFModisco motifs learnt from bias model (bias.h5) model

TFModisco motifs generated from profile contribution scores of the bias model. cwm_fwd, cwm_rev are the forward and reverse complemented consolidated motifs from contribution scores in subset of random peaks. These CWM motifs should be free from any Transcription Factor (TF) motifs and should contain either only bias motifs or random repeats. For each of these motifs, we use TOMTOM to find the top-3 closest matches (match_0, match_1, match_2) from a database consisting of both MEME TF motifs and heterogenous enzyme bias motifs that we have repeatedly seen in our datasets. The qvals (qval0,qval1,qval2) should be high (> 0.0001) if the closest hit is a TF motif (i.e indicating that the closest match is not the correct match) - this is also generally verifiable by eye as the closest match will look nothing like the CWMs. The qvals should be low if the closest hit is enzyme bias motif and generally verifiable that the top match looks like the CWM. The first 3-5 motifs in the list below should look like enzyme bias motif.

What to do if you find an obvious TF motif in the list?
Do not use this bias model as it will regress the contribution of the TF motifs (along with bias motifs) from the chrombpnet_nobias.h5. Reduce the bias_threshold_factor argument input to the chrombpnet bias pipeline or chrombpnet bias train command used in training the bias model and retrain a new bias model. For more intuition about this argument refer to the FAQ section in wiki.

What to do if you are unsure if a given CWM motif is resembling the match_0 logo for example?
Get marginal footprint on the match_0 motif logo (using the command chrombpnet footprints and make sure that the bias models footprint is closer to that of controls with no motif inserted - for examples look at FAQ )

pattern NumSeqs cwm_fwd cwm_rev match0 qval0 match0_logo match1 qval1 match1_logo match2 qval2 match2_logo
pos__0 9333 TN5_2 1.708290e-06 TN5_1 0.000020 TN5_7 0.000469
pos__1 6211 TN5_4 2.383960e-02 TN5_5 0.023840 TN5_8 0.041770
pos__2 3883 TN5_3 1.530650e-01 KLF4_MA0039.3 0.153065 TN5_4 0.153065
pos__3 3813 TN5_1 2.463760e-05 TN5_2 0.000025 TN5_3 0.000356
pos__4 2820 TN5_3 1.633020e-03 TN5_7 0.002835 TN5_1 0.048250
pos__5 1938 TN5_3 1.059630e-10 TN5_4 0.000126 TN5_5 0.000126
pos__6 1108 TN5_3 2.597330e-07 TN5_2 0.239226 TN5_4 0.487056
pos__7 923 TN5_3 1.846660e-06 TN5_1 0.004382 TBX21_TBX_3 0.035461
pos__8 743 TN5_3 8.579450e-13 TN5_4 0.001044 TN5_5 0.001044
pos__9 398 ZNF384_MA1125.1 5.112750e-02 PRDM6_HUMAN.H11MO.0.C 0.051127 ANDR_HUMAN.H11MO.0.A 0.204980
pos__10 304 NFATC1_NFAT_1 1.000000e+00 None NaN None NaN
pos__11 213 ZNF384_MA1125.1 5.872460e-03 CPEB1_RRM_1 1.000000 SRY_HUMAN.H11MO.0.B 1.000000
pos__12 197 LIN54_MA0619.1 1.000000e+00 ZNF384_MA1125.1 1.000000 ONECUT3_CUT_1 1.000000
pos__13 141 MEF2A_MOUSE.H11MO.0.A 2.159200e-01 ZNF384_MA1125.1 0.215920 ONECUT3_CUT_1 0.215920
pos__14 117 TN5_7 4.013820e-05 SOX8_HMG_3 0.751547 SOX4_HMG_1 1.000000
pos__15 92 FOXJ3_HUMAN.H11MO.0.A 5.215270e-02 FOXJ3_MOUSE.H11MO.0.A 0.052153 ONECUT3_CUT_1 0.052153
pos__16 76 DNASE_2 2.335610e-01 ZNF384_MA1125.1 1.000000 SRY_MA0084.1 1.000000
pos__17 27 TN5_3 5.018390e-01 TN5_1 0.605895 P53_HUMAN.H11MO.0.A 0.622577
pos__18 25 SRF_MADS_1 9.687150e-02 SRF_MA0083.3 0.096871 SRF_MADS_2 0.096871

TFModisco motifs generated from counts contribution scores of the bias model. cwm_fwd, cwm_rev are the forward and reverse complemented consolidated motifs from contribution scores in subset of random peaks. These motifs should be free from any Transcription Factor (TF) motifs and should contain motifs either weakly related to bias motifs or random repeats. For each of these motifs, we use TOMTOM to find the top-3 closest matches (match_0, match_1, match_2) from a database consisting of both MEME TF motifs and heterogenous enzyme bias motifs that we have repeatedly seen in our datasets. The qvals should be high (> 0.0001) if the closest hit is a TF motif (i.e indicating that the closest match is not the correct match, this is also generally verifiable by eye and making sure the closest match looks nothing like the CWMs).

What to do if you find an obvious TF motif in the list?
Do not use this bias model as it will regress the contribution of the TF motifs (along with bias motifs) from the chrombpnet_nobias.h5. Reduce the bias_threshold_factor argument input to the chrombpnet bias pipeline or chrombpnet bias train command used in training the bias model and retrain a new bias model. For more intuition about this argument refer to the FAQ section in wiki.

What to do if you are unsure if a given CWM motif is resembling the match_0 logo for example?
Get marginal footprint on the match_0 motif logo (using the command chrombpnet footprints and make sure that the bias models footprint is closer to that of controls with no motif inserted - for examples look at FAQ )

pattern NumSeqs cwm_fwd cwm_rev match0 qval0 match0_logo match1 qval1 match1_logo match2 qval2 match2_logo
pos__0 14297 DNASE_2 2.038460e-01 ZNF384_MA1125.1 2.319410e-01 LHX3_HUMAN.H11MO.0.C 2.319410e-01
pos__1 4373 ZNF384_MA1125.1 2.912580e-02 PRDM6_HUMAN.H11MO.0.C 2.912580e-02 STAT1_MOUSE.H11MO.0.A 1.744390e-01
pos__2 3792 ZNF384_MA1125.1 2.822410e-03 DNASE_2 2.583360e-02 HOMEZ_HOMEZ_1 3.881610e-01
pos__3 1876 DNASE_2 3.285700e-02 ZNF384_MA1125.1 1.000000e+00 FOXD2_forkhead_1 1.000000e+00
pos__4 1127 DNASE_2 1.764790e-01 CPEB1_RRM_1 1.764790e-01 IRF1_MA0050.2 1.764790e-01

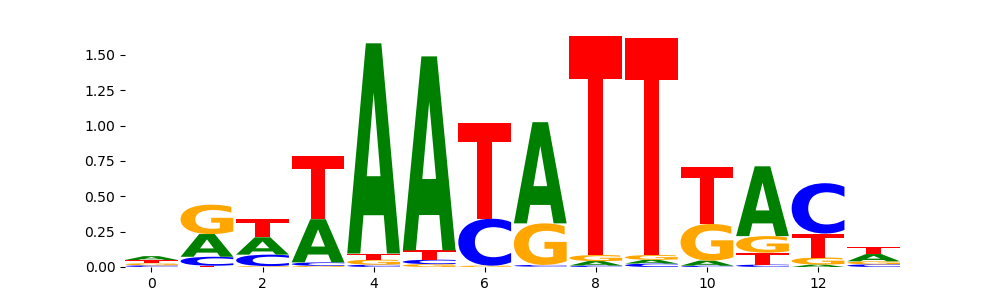

pos__5 45 FOXD2_forkhead_1 4.332670e-02 FOXD3_forkhead_1 1.387830e-01 PIT1_HUMAN.H11MO.0.C 1.387830e-01
pos__6 22 HSF1_MOUSE.H11MO.0.A 1.725320e-02 HSF1_HUMAN.H11MO.0.A 2.822410e-01 HSF2_HUMAN.H11MO.0.A 2.822410e-01
