Purpose of the notebook is to generate reports via saved images

In [1]:
import os
import sys
sys.path.append("/oak/stanford/groups/akundaje/manyu/C2H2_ZNF_project/utils/modisco_utils")
sys.path.append(os.path.abspath("/oak/stanford/groups/akundaje/manyu/softwares/tfmodisco_tf_models/src/"))
sys.path.append(os.path.abspath("/oak/stanford/groups/akundaje/manyu/softwares/tfmodisco_tf_models/notebooks/reports/"))
from tfmodisco.run_tfmodisco import import_shap_scores, import_tfmodisco_results
from motif.read_motifs import pfm_info_content, trim_motif_by_ic
import motif.moods as moods
import plot.viz_sequence as viz_sequence
from util import figure_to_vdom_image, import_peak_table
import h5py
import pandas as pd
import numpy as np
import modisco
import sklearn.decomposition
import umap
import matplotlib.pyplot as plt
import matplotlib.font_manager as font_manager
import vdom.helpers as vdomh
from IPython.display import display
import tqdm
import io
import base64
import urllib
import deepdish as dd
import shutil
from vdom.helpers import h1, p, img, div, b

Main class to generate reports in HTML form using the saved images and h5 files

In [2]:
from shutil import copyfile
def get_read_handle(h5_file):
    '''Copy to temp with a hashed name and give the read handle'''
    name = h5_file.split('/')[-1]
    #copy_file = '/users/manyu/temp/{}_{}'.format(str(hash(h5_file)),name)
    copy_file = '/srv/www/kundaje/manyu/tmp/{}_{}'.format(str(hash(h5_file)),name)

    if os.path.exists(copy_file):
        os.remove(copy_file)
    copyfile(h5_file,copy_file)
    f = h5py.File(copy_file,'r')
    return(f)


def close_h5file_read_handle(h5_file,read_handle):
    '''Removes the copied h5 file in temp and the read handle to avoid bloating'''
    read_handle.close()
    name = h5_file.split('/')[-1]
    #copy_file = '/users/manyu/temp/{}_{}'.format(str(hash(h5_file)),name)
    copy_file = '/srv/www/kundaje/manyu/tmp/{}_{}'.format(str(hash(h5_file)),name)
    if os.path.exists(copy_file):
        os.remove(copy_file)







class ReportGenerator():
    def __init__(self,tf,dataset):
        self.dataset = dataset
        self.tf = tf
        # Path to saved modisco results on /oak. Images and h5 files
        self.reports_base = '/oak/stanford/groups/akundaje/manyu/C2H2_ZNF_project/train_profile_models_2020/modisco_reports'
        self.results_dir = '{}/{}/{}'.format(self.reports_base,dataset,tf)

        ## Paths to the saved modisco report results to copy/copied on Mitra: Images and h5 files
        self.modisco_reports_results_mitra = '/srv/www/kundaje/manyu/C2H2_ZNF_project/modisco_report_saved_information'
        self.mitra_results_dataset_dir = '{}/{}'.format(self.modisco_reports_results_mitra,self.dataset)
        if not os.path.exists(self.mitra_results_dataset_dir):
            os.makedirs(self.mitra_results_dataset_dir)
        self.save_results_mitra_dir  = '{}/{}'.format(self.mitra_results_dataset_dir,self.tf)

        self.main_patterns_dir = '{}/main_patterns'.format(self.save_results_mitra_dir)
        self.main_patterns = '{}/all_motifs.h5'.format(self.main_patterns_dir)

        self.subpatterns_dir  = '{}/sub_patterns'.format(self.save_results_mitra_dir)
        self.subpatterns = '{}/all_motif_subclusters.h5'.format(self.subpatterns_dir)


        ## Paths to the modisco reports html on lab cluster
        self.modisco_reports_base = '/srv/www/kundaje/manyu/C2H2_ZNF_project/modisco_reports'
        self.modisco_reports_dataset_base = '{}/{}'.format(self.modisco_reports_base,self.dataset)
        if not os.path.exists(self.modisco_reports_dataset_base):
            os.makedirs(self.modisco_reports_dataset_base)
        self.modisco_report_filename = '{}/{}.html'.format(self.modisco_reports_dataset_base,self.tf)

        ## Path to webpages and weblinks to images(needs weblinks to load; not local links)
        self.mitra_web_base = 'http://mitra.stanford.edu/kundaje/manyu/C2H2_ZNF_project/'
        self.mitra_web_results_base = '{}/modisco_report_saved_information/{}/{}'.format(self.mitra_web_base,self.dataset,self.tf)
        self.mitra_web_results_main_patterns = '{}/main_patterns'.format(self.mitra_web_results_base)
        self.mitra_web_results_sub_patterns = '{}/sub_patterns'.format(self.mitra_web_results_base)
        self.mitra_web_results_profiles = '{}/profiles_dir'.format(self.mitra_web_results_base)
        self.mitra_web_results_b1h_aln = '{}/b1h_aligments'.format(self.mitra_web_results_base)

        ##Do we need this here?
        #self.mitra_web_reports_base = '{}/modisco_reports'.format(self.mitra_web_base)



    def copy_to_mitra(self):
        assert(os.path.exists(self.results_dir))
        if os.path.exists(self.save_results_mitra_dir):
            shutil.rmtree(self.save_results_mitra_dir)
        shutil.copytree(self.results_dir,self.save_results_mitra_dir)
        print('Finished copying files to Mitra')
        permissions_cmd = 'chmod -R 777 {}'.format(self.save_results_mitra_dir)
        os.system(permissions_cmd)



    def show_subcluster_table(self):

        assert(os.path.exists(self.main_patterns))

        ## Opening a read handle for h5. Remmeber to close it also
        try:
            patterns_read_handle = get_read_handle(self.main_patterns)
        except Exception as e:
            print(e)

        try:
            sub_patterns_read_handle = get_read_handle(self.subpatterns)
        except Exception as e:
            print(e)

        num_patterns  = len(patterns_read_handle.keys())



        for pattern_i in range(num_patterns):

            display(vdomh.h3("Pattern {}/{}".format(str(pattern_i + 1), num_patterns)))



            # Sort this out:
            colgroup = vdomh.colgroup(
                vdomh.col(style={"width": "5%"}),
                vdomh.col(style={"width": "5%"}),
                vdomh.col(style={"width": "50%"}),
                vdomh.col(style={"width": "40%"})
            )
            header = vdomh.thead(
                vdomh.tr(
                    vdomh.th("Subpattern", style={"text-align": "center"}),
                    vdomh.th("Seqlets", style={"text-align": "center"}),
                    vdomh.th("Embeddings", style={"text-align": "center"}),
                    vdomh.th("CWM", style={"text-align": "center"}),
                    vdomh.th("PFM", style={"text-align": "center"})
                )
            )


            ## Fill in the paths and seqlets of the main pattern
            total_seqlets = patterns_read_handle[str(pattern_i)]['n_seqlets'].value
            emb_agg_path = '{}/{}_subcluster_agg.png'.format(self.mitra_web_results_sub_patterns,str(pattern_i))
            pwm_path = '{}/{}_pfm_full.png'.format(self.mitra_web_results_main_patterns,str(pattern_i))
            cwm_path = '{}/{}_cwm_full.png'.format(self.mitra_web_results_main_patterns,str(pattern_i))


            table_rows = [vdomh.tr(
                vdomh.td("Agg."),
                vdomh.td(str(total_seqlets)),
                vdomh.td(img(src=emb_agg_path)),
                vdomh.td(img(src=cwm_path)),
                vdomh.td(img(src=pwm_path))
            )]


            total_sub_pats = len(sub_patterns_read_handle[str(pattern_i)].keys())
            for subpat_i in range(total_sub_pats):
                emb_path = '{}/{}_subcluster_{}.png'.format(self.mitra_web_results_sub_patterns,str(pattern_i),str(subpat_i))

                total_seqlets = sub_patterns_read_handle[str(pattern_i)]['subcluster_{}'.format(str(subpat_i))]['n_seqlets'].value
                pwm_path = '{}/{}_subcluster_{}_pfm_trimmed.png'.format(self.mitra_web_results_sub_patterns,str(pattern_i),str(subpat_i))
                cwm_path = '{}/{}_subcluster_{}_cwm_trimmed.png'.format(self.mitra_web_results_sub_patterns,str(pattern_i),str(subpat_i))
                table_rows.append(vdomh.tr(
                vdomh.td('{}'.format(str(subpat_i))),
                vdomh.td(str(total_seqlets)),
                vdomh.td(img(src=emb_path)),
                vdomh.td(img(src=cwm_path)),
                vdomh.td(img(src=pwm_path))
            ))
            table = vdomh.table(header,vdomh.tbody(*table_rows))

            display(table)

        #Remove unnecessary temp files
        close_h5file_read_handle(self.main_patterns,patterns_read_handle)
        close_h5file_read_handle(self.subpatterns,sub_patterns_read_handle)


    def show_footprints_and_peak_dist(self):
        try:
            patterns_read_handle = get_read_handle(self.main_patterns)
        except Exception as e:
            print(e)

        num_patterns  = len(patterns_read_handle.keys())
        for pattern_i in range(num_patterns):

            display(vdomh.h3("Pattern {}/{} Footprint".format(str(pattern_i + 1), num_patterns)))
            footprint_plot = '{}/profiles_pattern_{}.png'.format(self.mitra_web_results_profiles,str(pattern_i))
            motif_distplot  = '{}/motif_distances_pattern_{}.png'.format(self.mitra_web_results_profiles,str(pattern_i))
            display(img(src=footprint_plot))
            display(vdomh.h3("Pattern {}/{} Motif Distance Distribution".format(str(pattern_i + 1), num_patterns)))
            display(img(src=motif_distplot))


    def show_b1h_alignments(self):
        try:
            patterns_read_handle = get_read_handle(self.main_patterns)
        except Exception as e:
            print(e)



        num_patterns  = len(patterns_read_handle.keys())
        header = vdomh.thead(
            vdomh.tr(
                vdomh.th("Pattern", style={"text-align": "center"}),
                vdomh.th("N-Seqlets", style={"text-align": "center"}),
                vdomh.th("Alignment", style={"text-align": "center"})

            )
        )


        display(vdomh.h2("B1H alignments of all patterns"))
        table_rows = []
        for pattern_i in range(num_patterns):



            total_seqlets = patterns_read_handle[str(pattern_i)]['n_seqlets'].value
            alignment_img = '{}/pattern_{}_aligned.png'.format(self.mitra_web_results_b1h_aln,str(pattern_i))


            table_rows.append(vdomh.tr(
            vdomh.td('{}'.format(str(pattern_i+1))),
            vdomh.td('{}'.format(str(total_seqlets))),
            vdomh.td(img(src=alignment_img)),

            ))
        close_h5file_read_handle(self.main_patterns,patterns_read_handle)
        table = vdomh.table(header,vdomh.tbody(*table_rows))
        display(table)
In [3]:
# Define parameters/fetch arguments
dataset = os.environ["DATASET"]
tf = os.environ["TF"]
In [4]:
# tf = 'ENCSR464KFG'
# dataset = 'ENCODE'
In [5]:
a = ReportGenerator(tf=tf,dataset=dataset)
In [6]:
# a.copy_to_mitra()
In [7]:
a.show_subcluster_table()

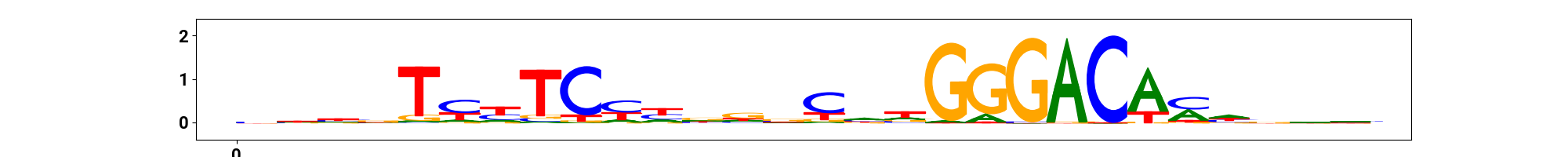

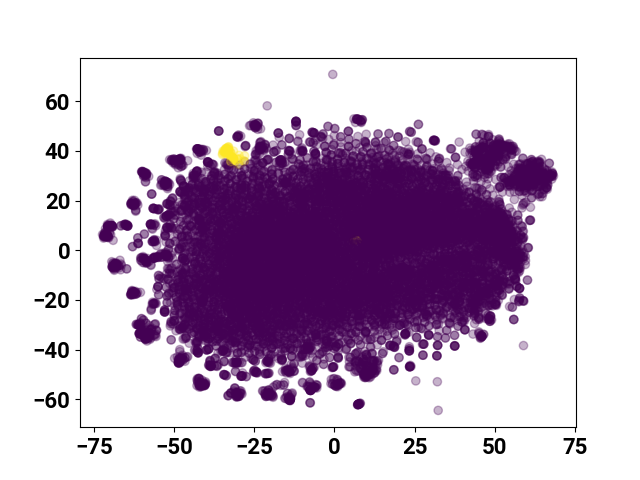

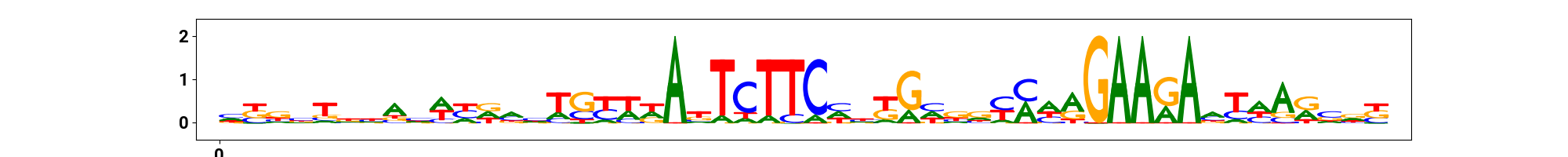

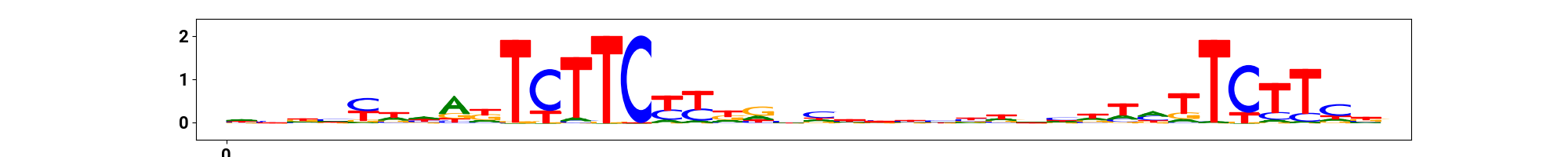

Pattern 1/8

/users/manyu/.local/lib/python3.6/site-packages/ipykernel_launcher.py:127: H5pyDeprecationWarning: dataset.value has been deprecated. Use dataset[()] instead.
/users/manyu/.local/lib/python3.6/site-packages/ipykernel_launcher.py:146: H5pyDeprecationWarning: dataset.value has been deprecated. Use dataset[()] instead.
SubpatternSeqletsEmbeddingsCWMPFM
Agg.12291
01944
11880
21641
31430
41388
51271
6820
7643
8137
9137
10109
11102
1292
1390
1483
1582
1674
1772
1866
1965
2041
2133
2227
2319
2419
2514
268
274

Pattern 2/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.764
0167
1161
2126
3112
4105
561
627
75

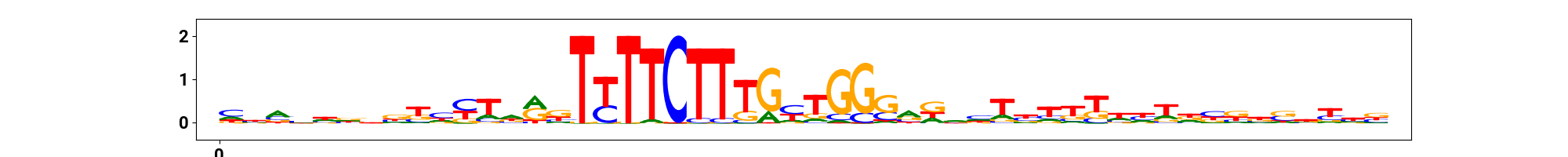

Pattern 3/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.118
030
122
221
319
418
58

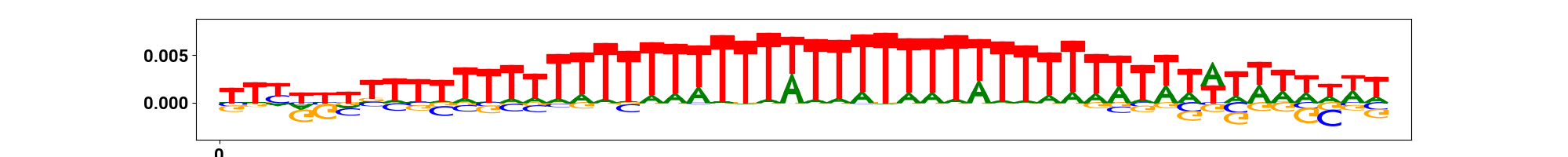

Pattern 4/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.107
033
130
224
312
48

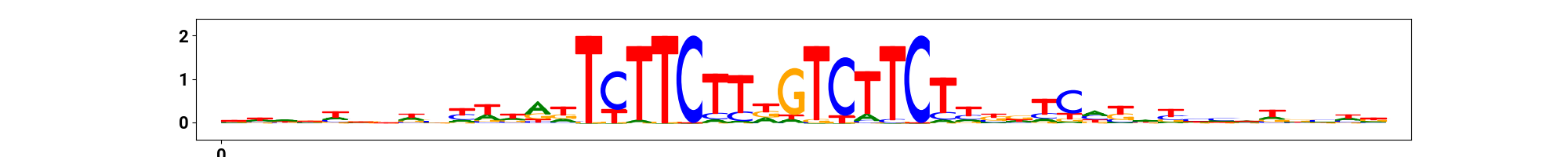

Pattern 5/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.114
041
123
217
315
410
58

Pattern 6/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.71
028
127
210
33
43

Pattern 7/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.41
016
114
211

Pattern 8/8

SubpatternSeqletsEmbeddingsCWMPFM
Agg.36
015
112
29
In [8]:
a.show_footprints_and_peak_dist()

Pattern 1/8 Footprint

Pattern 1/8 Motif Distance Distribution

Pattern 2/8 Footprint

Pattern 2/8 Motif Distance Distribution

Pattern 3/8 Footprint

Pattern 3/8 Motif Distance Distribution

Pattern 4/8 Footprint

Pattern 4/8 Motif Distance Distribution

Pattern 5/8 Footprint

Pattern 5/8 Motif Distance Distribution

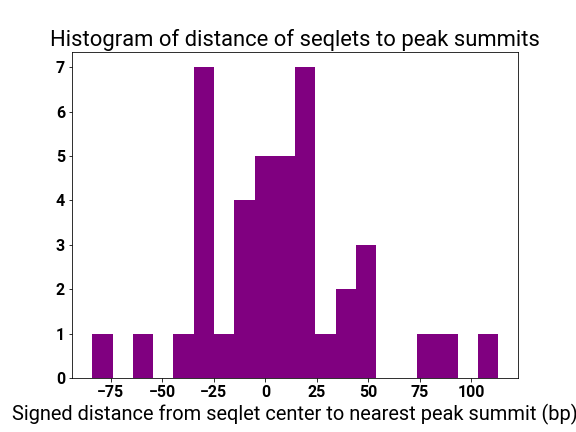

Pattern 6/8 Footprint

Pattern 6/8 Motif Distance Distribution

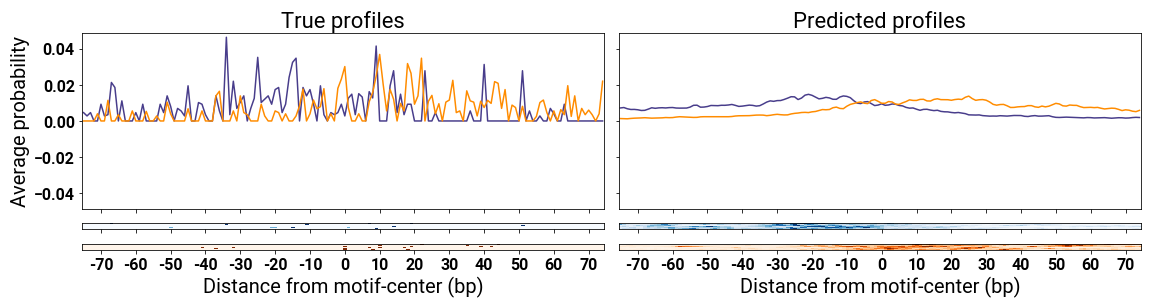

Pattern 7/8 Footprint

Pattern 7/8 Motif Distance Distribution

Pattern 8/8 Footprint

Pattern 8/8 Motif Distance Distribution

In [9]:
a.show_b1h_alignments()

B1H alignments of all patterns

/users/manyu/.local/lib/python3.6/site-packages/ipykernel_launcher.py:207: H5pyDeprecationWarning: dataset.value has been deprecated. Use dataset[()] instead.
PatternN-SeqletsAlignment
112291
2764
3118
4107
5114
671
741
836
In [10]:
In [10]:
In [10]:
1
Out[10]:
1
In [11]:
